HS-0307 Test Probe For IPEX1 With SMAF (8G)
電氣特性 Electrical Specifications
適用頻段範圍 Frequency Range : DC ~ 8 GHz
阻抗 Impedance : 50 Ω
駐波比 Voltage Standing Wave Ratio (VSWR) :
1.2 Max.(DC~6GHz)；
1.4Max.(6~8GHz)
絕緣耐電壓 Dielectric Withstanding Voltage : 500 Vrms
絕緣電阻 Insulation Resistance : 1000MΩ
中心導體阻抗 Center Contact Resistance : 40mΩ
外導體阻抗 Outer Contact Resistance : 6mΩ
機械特性 Mechanical Data
耦合方式 Coupling Method : Threaded
使用壽命 Durability : 20000 Cycles for Probe Side
適用溫度範圍 Temperature Range : -65°C ~ 165°C
彈簧壓縮尺寸 Spring comprerssion dimension : 2mm
尺寸圖面及實體照片 Dimension & Picture
 Test Probe For RF Coaxial Connectors 1.png)

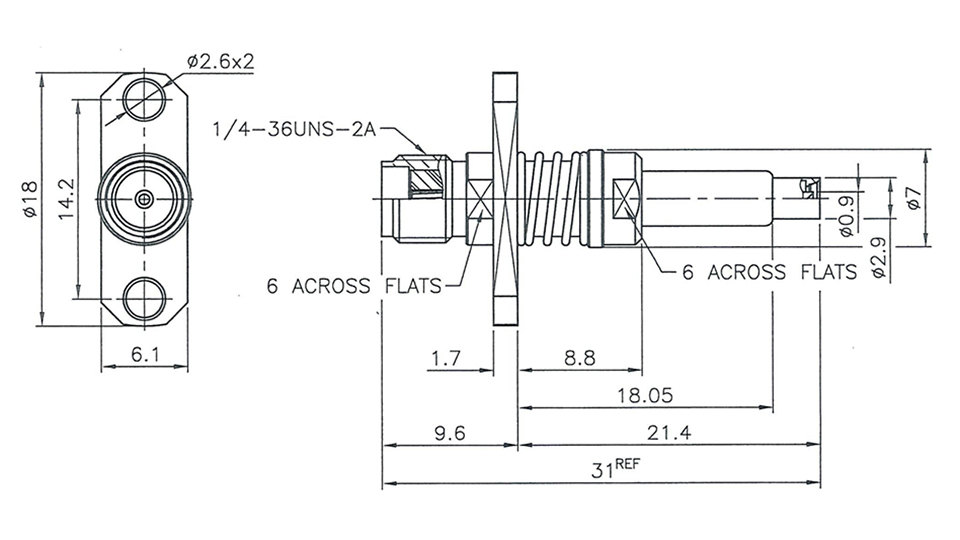

 Test Probe For RF Coaxial Connectors Specification 2.jpg)
