HS-0326A Test Probe For mm8830 With SMPMM (8G)
電氣特性 Electrical Specifications
適用頻段範圍 Frequency Range : DC ~ 8 GHz
阻抗 Impedance : 50 Ω
駐波比 Voltage Standing Wave Ratio (VSWR) :
1.2 Max.(DC~3GHz)；
1.5Max.(3~8GHz)
插入損耗 Insertion Loss : 1.45 dB Max.
絕緣耐電壓 Dielectric Withstanding Voltage : 200 Vrms
絕緣電阻 Insulation Resistance : 500MΩ
接觸電阻 Contact Resistance (without conductor resistance) : 70 mΩ Max.
機械特性 Mechanical Data
使用壽命 Durability : 10000 Cycles
適用溫度範圍 Temperature Range : -40°C ~ +85°C
尺寸圖面及實體照片 Dimension & Picture

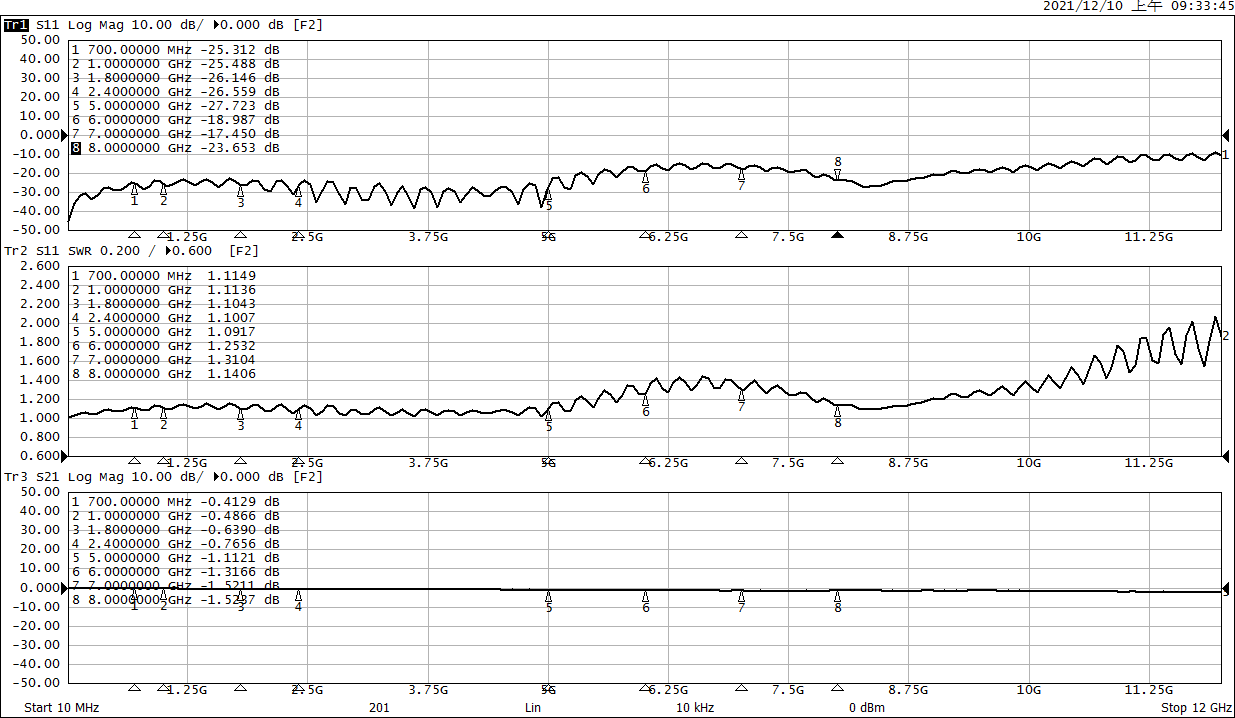

測試報告 Test Repoet
