功率分配器 0.5~8GHz ( 1分2,4,8,16 )
產品規格
| 品項料號 | HSPD-0580-1V2001 | HSPD-0580-1V4001 | HSPD-0580-1V8001 | HSPD-0580-1V16001 |
|
規格 Way |
2 way | 4 way | 8 way | 16 way |
|
頻段
Frequency Range
|
0.5-8GHz | 0.5-8GHz | 0.5-8GHz | 0.5-8GHz |
|
阻抗
Impedance
|
50Ω | 50Ω | 50Ω | 50Ω |
|
插入損耗
Insertion Loss
|
≦1.4dB
(Above Theoretical Loss:3.0dB)
|
≦2.0dB
(Above Theoretical Loss:6.0dB)
|
≦3.0dB
(Above Theoretical Loss:9.0dB)
|
≦4.5dB
(Above Theoretical Loss:12.0dB)
|
|
駐波比
VSWR
|
≦1.25 (Input)
≦1.20 (Output)
|
≦1.30 (Input)
≦1.20 (Output)
|
≦1.50 (Input)
≦1.30 (Output)
|
≦1.50 (Input)
≦1.30 (Output)
|
|
隔離度
Isolation
|
≧20 dB | ≧20 dB | ≧18 dB | ≧ 18dB |
|
幅度平衡度
Amplitude Balance
|
≦±0.3 dB | ≦±0.3 dB | ≦±0.4 dB | ≦±0.4 dB |
|
相位平衡度
Phase Balance
|
≦±3° | ≦±4° | ≦±5° | ≦±8° |
|
功率
Power
|
20W (Forward)
2W (Reverse)
|
20W (Forward)
2W (Reverse)
|
20W (Forward)
2W (Reverse)
|
20W (Forward)
2W (Reverse)
|
|
工作溫度
Operating temperature
|
-45 ~ +85°C | -45 ~ +85°C | -45 ~ +85°C | -45 ~ +85°C |
|
尺寸
Dimension
|
28 × 72 × 12mm | 56 × 86 × 10mm | 114 × 114.5 × 10mm | 232 × 150 × 10mm |

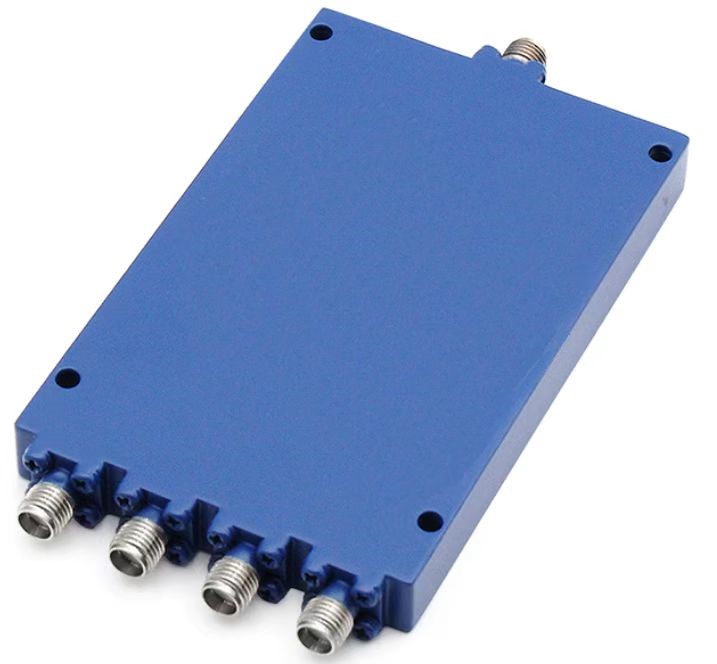

產品圖片
